Model 353637F Series: Automatic, Gantry, Large Area, Triple-Convertible Bonders Last revised: 11/01/12

Overview

Application and Function :

Series 353637F models are three-way convertible wire bonders of a gantry design. A moving bond head brings the bonding function to the work, allowing the material handling to occur under customer control. This open structure, along with a large bondable area, places very little limit on the size of the work.

Arrays of fine wire connections are bonded automatically per device program. Targeting is aligned by pattern recognition, and position is adjusted by optical encoders. Bond quality and consistency, as well as loop shape are exceptional through a combination of fine vertical axis motions, software control and ultrasonics. Process control is further aided by missing wire detection, which functions without work contact, and also with on-screen presentation of bond progress via a second, side-view camera.

Models of this series allow for ball bonding and wedge bonding with angled wire feed and vertical feed, for deep access work. Quick conversion between these methods occurs by exchange of clamp assemblies and wire drag means. In each configuration, wire is fed in a controlled amount by a motorized despooler.

Programming and Interface :

All input for programming and bonding operation occurs through use of a mouse, a keyboard and a control-switch pad. The graphical user interface consists of many screen forms, all displayed on a single color LCD. This display also presents embedded views from the pattern recognition and process monitoring cameras.

User data of machine configuration, and of device targets and image patterns, can be saved externally.



Definitions of Models of this Series

353637F-90

Low frequency wedge and ball bonding machine including Feature -90, Floor-Standing Frame



Features Available for this Series

–9640:

Adjustable Height Work Platform

Work platform with adjustable height for variable package thickness.

–9640.001:

Adjustable Height Work Platform with Planarity Control

Work platform with adjustable height for variable package thickness and three point adjustment control of work surface planarity. (recommended)

–10175.02:

Work Station, Motorized Rotary

Heated work station, motorized programmable rotary with a 3.25" diameter work area. Requires K~1200D temperature controller.

–10176:

Work Station, Manual Rotary to Detents

Heated work station, manual rotary to detent positions with a 3.25" diameter work area and vacuum clamping. Requires -9640 platform and K~1200D temperature controller.

–10177.04:

Large-Area Heated Work Station

Heated work station with drop-in work piece adapter. Requires –9640 platform.

Mechanical



Ultrasonics:





Frequency

63 kHz nominal



Time

up to 999 ms; programmable



Power

up to 4 Watts; programmable





Bond Force:

10 – 100 grams; programmable



Bond Tool:





Diameter

1/16"



Length

0.750" capillary, 0.750" 45 & 90 degree wedge





Tool Heat:

adjustable radiant heater



Wire Clamps:





Actuation

air opened / spring closed



Adjustment

X/Y/Z position; clamp force (through change of spring); opening gap



Bond Wire:





Size

0.7 to 2 mil diameter wire (change of clamp spring is required for wire above 1.25 mil diameter) or 0.5x2 to 1x5 mil ribbon



Spool

2" diameter



X/Y/Z Axes:





X axis

9.500" bond range; roller bearing ways; closed loop positioning with optical encoders



Y axis

5.375" bond range; roller bearing ways; closed loop positioning with optical encoders



Z axis

0.563" travel



Work Elevation:

5.000" nominal above tabletop





Electrical Software and Hardware



Process Control:

configuration specific software running on the Windows XP operating system



Processor:

Intel Pentium IV; 512 MB RAM; housed in an industrial CPU enclosure



Device Storage:





Hard Disk

10 GB or greater



Back-up

USB flash drive



Pattern Recognition:

Matrox system



Display:

high resolution 15" color LCD



Emergency Stop:

single button on switch pad for motor power interrupt; lighted





ESD Protection

Protection against Electrostatic Discharge is implemented by finishing exposed tool assemblies and other moving parts by Electroless Nickel plating, which is conductive; and all exposed painted parts with a powder-coated paint that is dissipative (1 - 10 MΩ).



Machine Configuration



Microscope:

Olympus SZ51-60E; 12 – 60X magnification (included)



Illumination:

"Luxuray" #10265 (included)



Bond Tool:

(1) 1 mil, capillary, (1) 1 mil, 45 degree wedge & (1) 1 mil, 90 degree wedge tool (included)



Work Holder:

workholders are not included, and are priced separately. A large number of previously designed special work holders are available. Those with Status of Current can be selected for delivery in the same time span as the machine, while those of Status Available Not Stocked must be ordered separately. Workholders for new work pieces requiring custom design and fabrication will be quoted upon receipt of drawings and samples: These must be ordered on separate purchase orders.



Temperature Controller:

West·Bond K~1200D / 1201D (recommended; not included)



Services Required



Compressed Air:

50 psi; dry air

regulating valve & pressure gauge provided. Connection is via 1/4-inch tubing.



Vacuum:

22 in/Hg min. (if needed for vacuum clamping workholder)



Electrical:

50-60 Hz, single-phase, either 115 VAC or 230 VAC [input must be configured at the factory for 230 VAC]. A fuse and three-prong power cord connector is provided for 115 VAC; for 230 VAC, these must be changed to conform to local requirements.



Weights & Dimensions



Uncrated:

331 lbs



CPU Module

40 lbs



Power Module

30 lbs



Crated:

655 lbs; w/ accessories



Overall Dimensions:





Width

34.2" (shelf down), 45.3" (shelf up); casters removed



Depth

28.0"



Height

51.5" (w/o monitor)



Dimensional Drawings

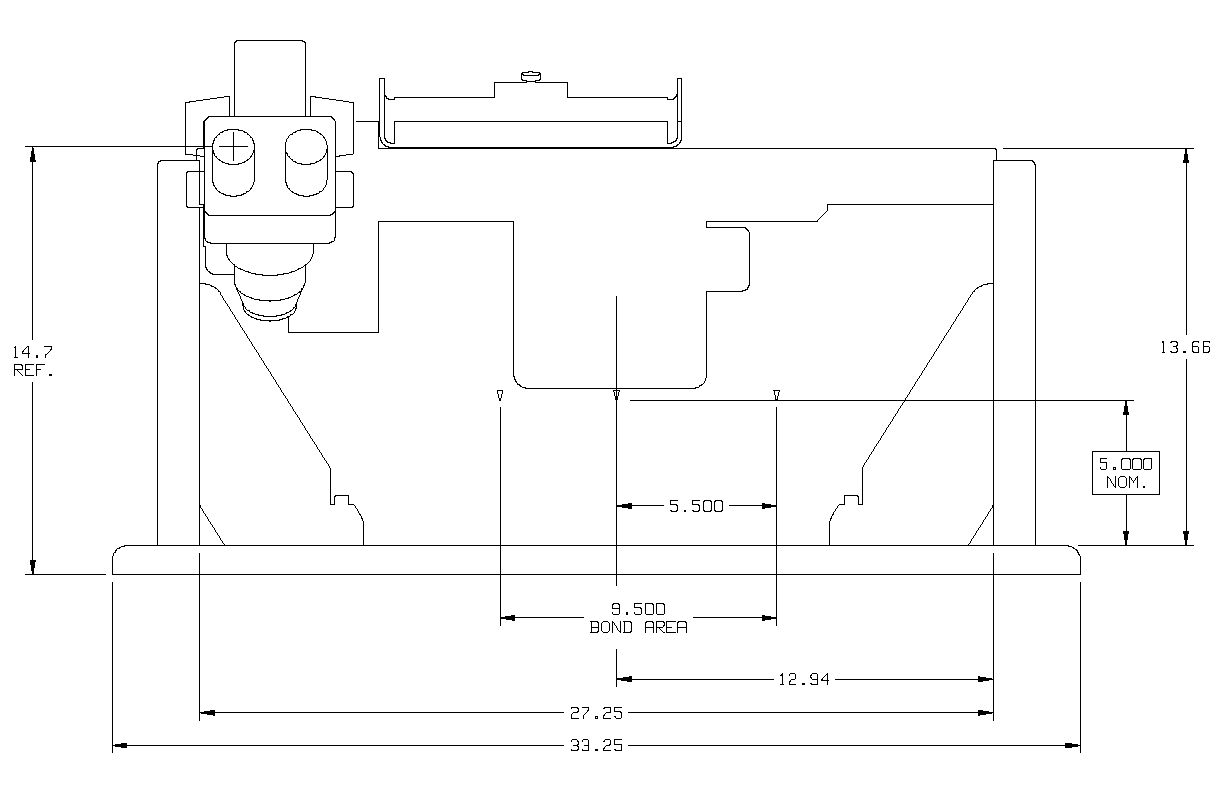

End View – Overall


End View

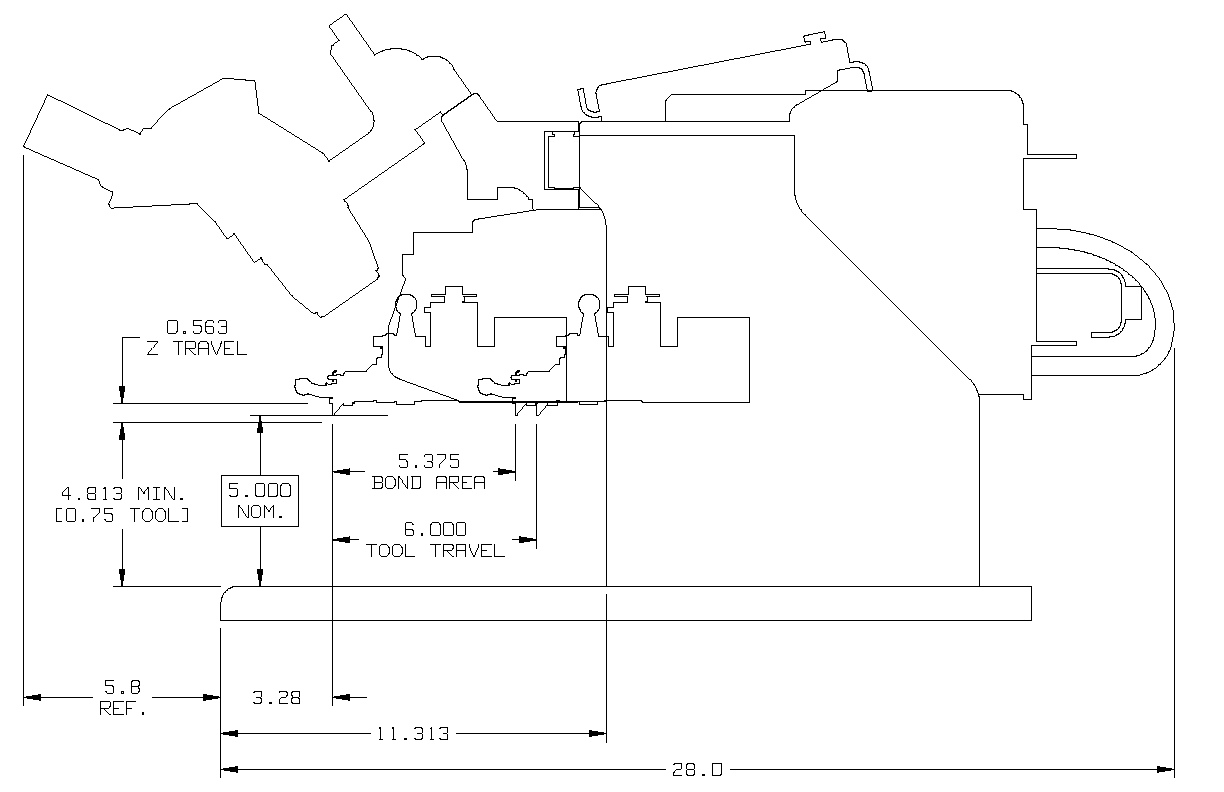

Side View

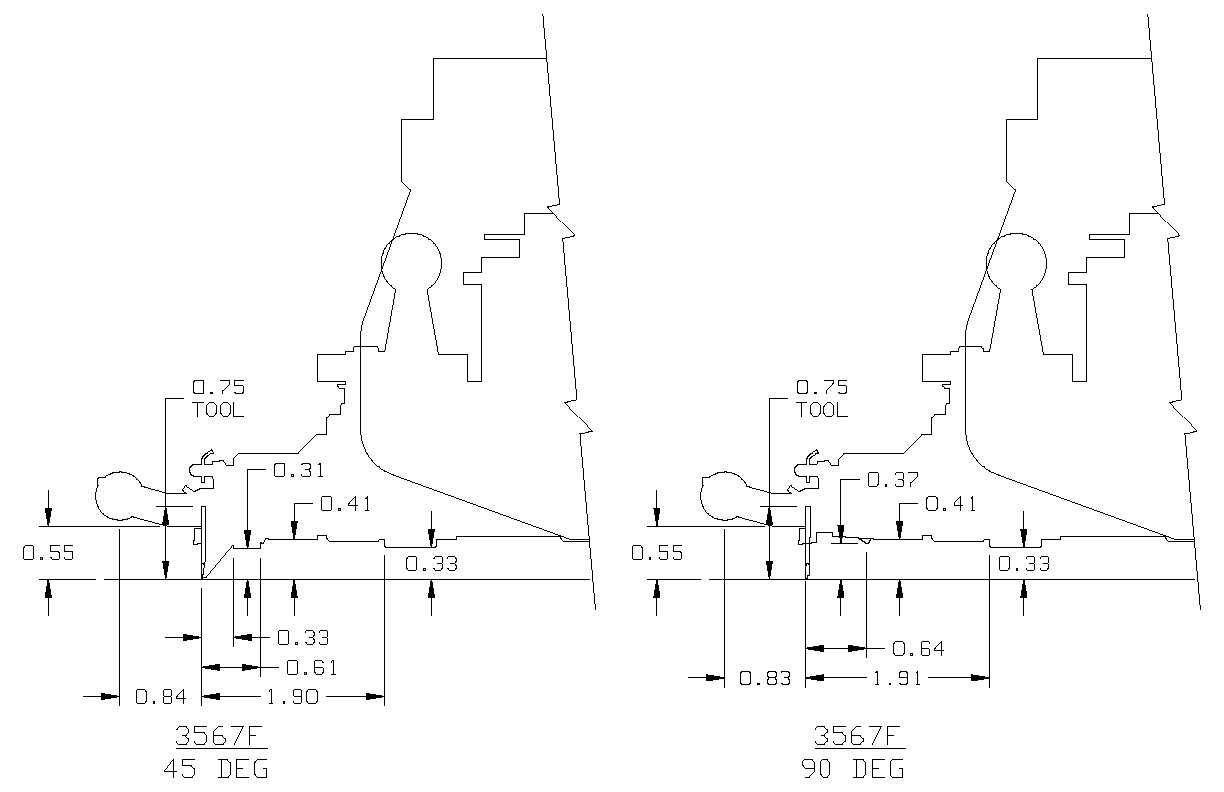

Tool Head Clearances
