Last revised: December 21, 2010

  • LED Luxuray Illuminator Brochure (PDF 249 KB)

  • LED Luxuray LED Replacement (PDF 294 KB)

  • West·Bond Accessories and Workholder Assemblies Brochure (PDF 1.12 MB)
  • Following is a list of Accessories for use with West·Bond Machines, and also for stand-alone use.

    Product No:

    Title:

    Description:

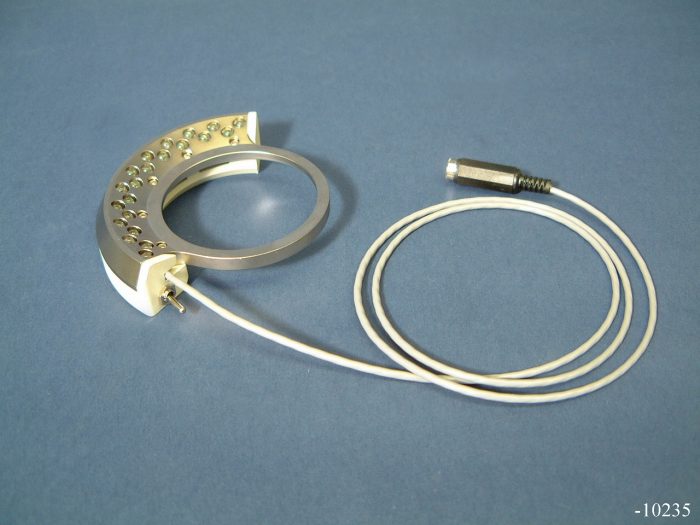

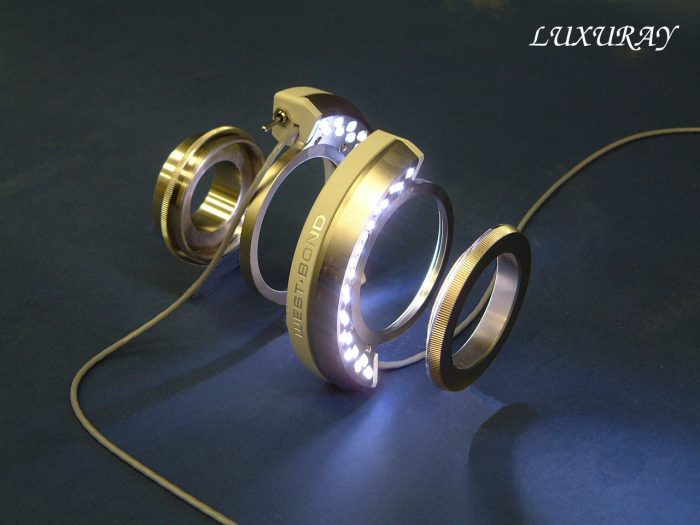

    -10235.01

    LED Luxuray Illuminator, without power supply.

    LED Luxuray Illuminator, without power supply. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; with 3 position switch; ESD protected.

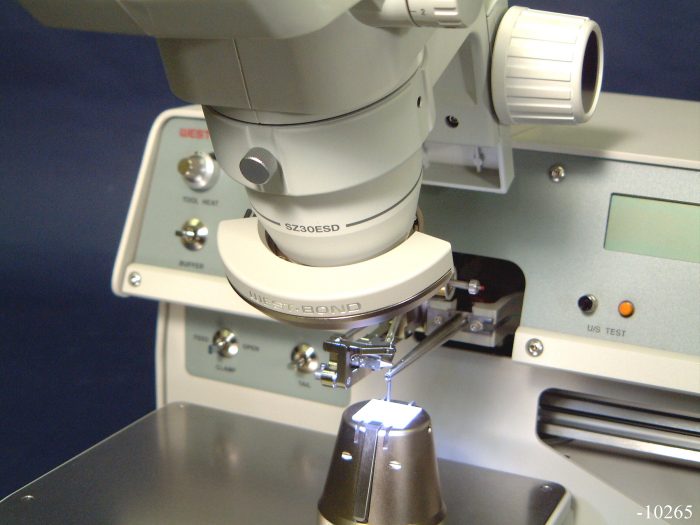

    -10265

    LED Luxuray Illuminator, with stand-alone power supply.

    LED Luxuray Illuminator, with stand-alone power supply and mounting hardware. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Olympus SZ30, SZ40, SZ60 & SZ51/61 series and Nikon SMZ-1 & SMZ-2

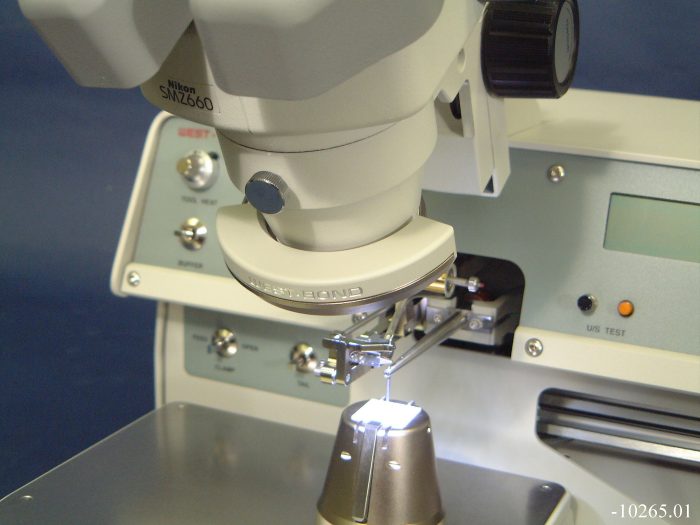

    -10265.01

    LED Luxuray Illuminator, with stand-alone power supply.

    LED Luxuray Illuminator, with stand-alone power supply and mounting hardware. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Nikon SMZ-660 & SMZ-645

    -10265.02

    LED Luxuray Illuminator, with stand-alone power supply.

    LED Luxuray Illuminator, with stand-alone power supply and mounting hardware. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Leica S4E, S6, S6D, S6E & S6T

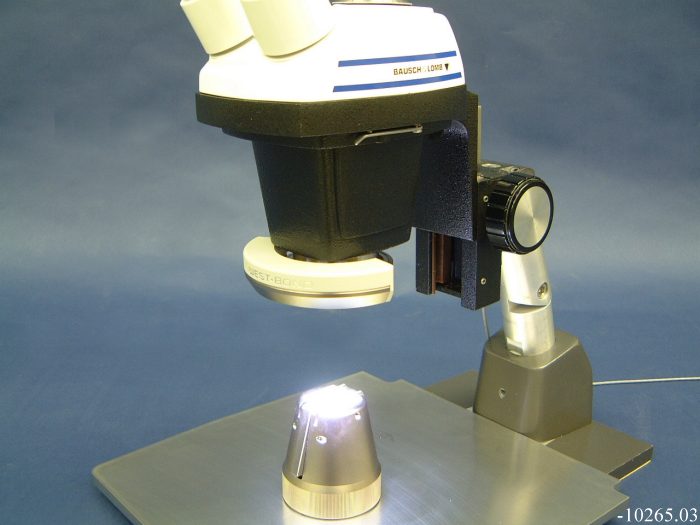

    -10265.03

    LED Luxuray Illuminator, with stand-alone power supply.

    LED Luxuray Illuminator, with stand-alone power supply and mounting hardware. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Leica SZ1, SZ2, SZ3, SZ4 & SZ5

    -10265.04

    LED Luxuray Illuminator, with stand-alone power supply.

    LED Luxuray Illuminator, with stand-alone power supply and mounting hardware. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Wild / Leica M3, M5, M7 & MZ6

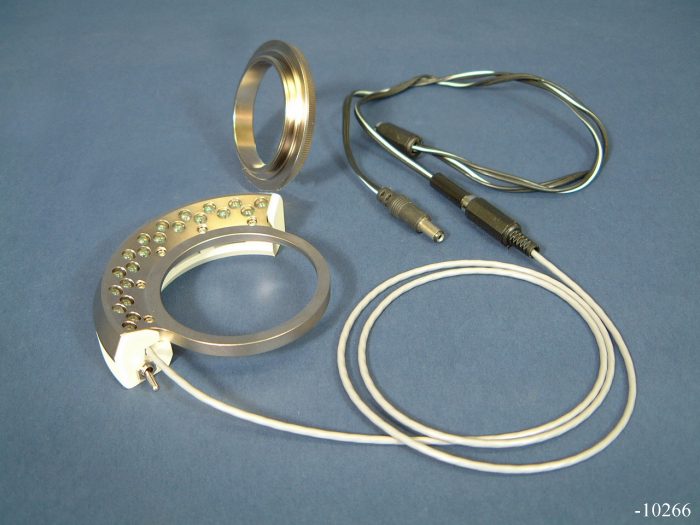

    -10266

    LED Luxuray Illuminator, Second Array

    LED Luxuray Illuminator, Second Array with "Y" adapter for power supply connection. This adds an additional light array and gives nearly full circle illumination. For use with an existing -10265.xx LED Luxuray assembly.

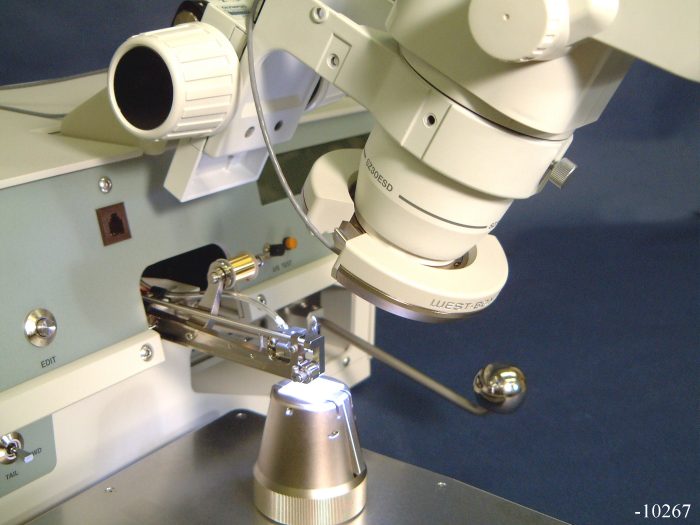

    -10267

    LED Luxuray Illuminator, Twin Array

    LED Luxuray Illuminator, Twin Array, with power supply and mounting hardware. A pair of lamp assemblies gives nearly full circle illumination. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Olympus SZ30, SZ40, SZ60 & SZ51/61 series and Nikon SMZ-1 & SMZ-2

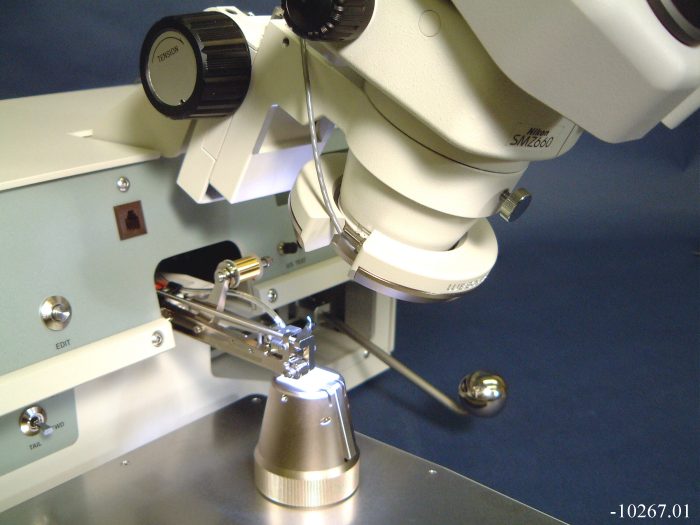

    -10267.01

    LED Luxuray Illuminator, Twin Array

    LED Luxuray Illuminator, Twin Array, with power supply and mounting hardware. A pair of lamp assemblies gives nearly full circle illumination. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Nikon SMZ-660 & SMZ-645

    -10267.02

    LED Luxuray Illuminator, Twin Array

    LED Luxuray Illuminator, Twin Array, with power supply and mounting hardware. A pair of lamp assemblies gives nearly full circle illumination. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Leica S4E, S6, S6D, S6E & S6T

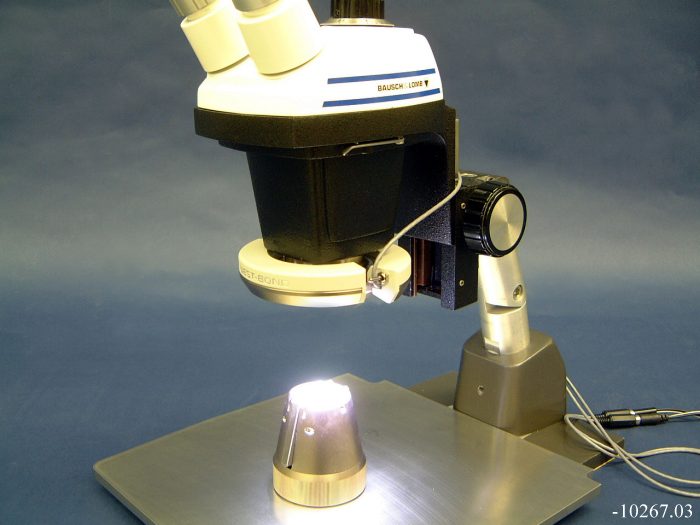

    -10267.03

    LED Luxuray Illuminator, Twin Array

    LED Luxuray Illuminator, Twin Array, with power supply and mounting hardware. A pair of lamp assemblies gives nearly full circle illumination. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Leica SZ1, SZ2, SZ3, SZ4 & SZ5

    -10267.04

    LED Luxuray Illuminator, Twin Array

    LED Luxuray Illuminator, Twin Array, with power supply and mounting hardware. A pair of lamp assemblies gives nearly full circle illumination. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected.
    Usage: Wild / Leica M3, M5, M7 & MZ6

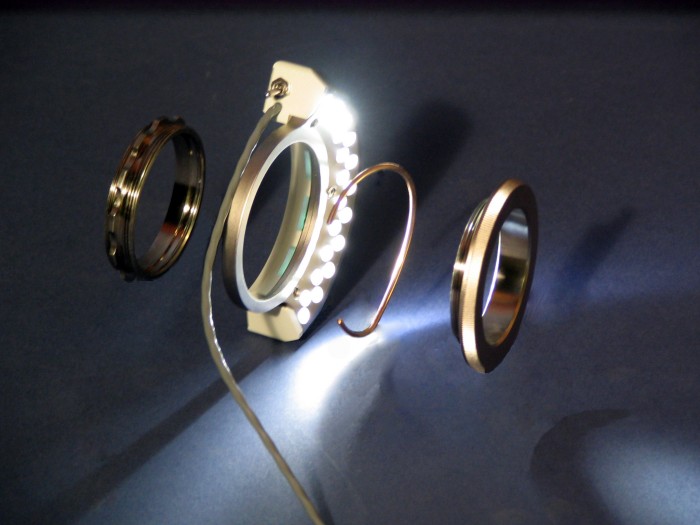

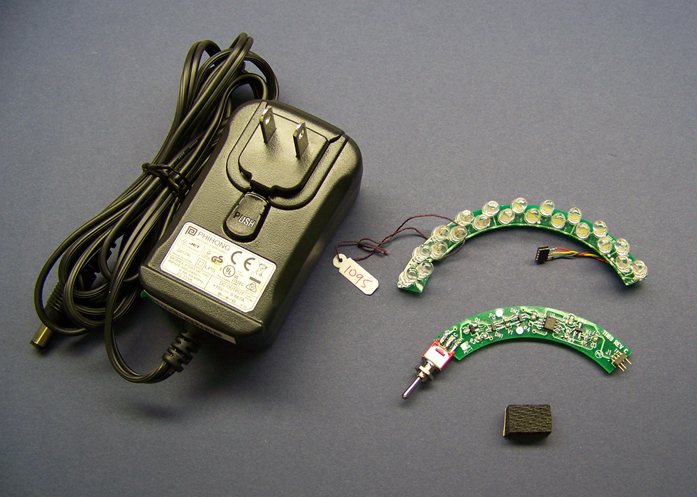

    -10295

    LED Luxuray Replacement Assembly

    LED Luxuray Replacement Assembly. This kit is intended for direct lamp replacement on standard LED Luxuray Illuminator assembly A-10235. This assembly consists of pre-wiring 7 PCB's that includes 21 lamps with 2 in-line connectors; ESD protected.

    -10557

    LED Luxuray Illuminator with stand-alone power supply for use with -43B.

    LED Luxuray Illuminator with stand-alone power supply and mounting adapters for use with the -43B. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected. Usage: Olympus SZ30, SZ40, SZ60 & SZ51/61 series and Nikon SMZ-1 & SMZ-2

    -10557.03

    LED Luxuray Illuminator with stand-alone power supply for use with -43B.

    LED Luxuray Illuminator with stand-alone power supply and mounting adapters for use with the -43B. Focused LED lamps are effective for use at focal distances of 80 to 120 mm; for 100-220V AC power source; ESD protected. Usage: Leica SZ1, SZ2, SZ3, SZ4 & SZ5

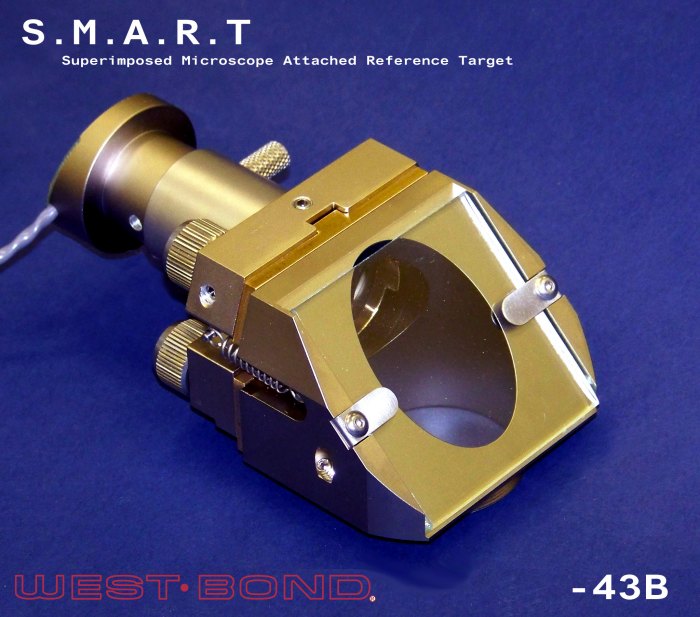

    -43B

    S.M.A.R.T.

    S.M.A.R.T., Superimposed Microscope Attached Reference Target. A self-contained assembly for attachment directly to microscope objective to superimpose positional information onto the workpiece view. This information is added by the beam splitter principle in which the objective rays are partly transmitted to the work and partly reflected to focus on the information plane. The information reticule may be moved about in that plane to align to the "work" point. ESD protected. Power supply included. -10557.xx Luxuray assemblies include adapters to mount the -43B. Existing customer Luxuray assemblies require assembly 10444 to mount the -43B.

    -46C

    Tool Assembly for Deep Access Bonding, Vertical Feed, "C" Series

    Vertical Wire or Ribbon Feed for Deep Access, Model 7400C. Changes the standard Model 7400C wire/ribbon guide track from 45º to approximately 75º to simulate vertical clamp movement. Clamps are opened pneumatically and are driven by linear actuator. Used for bonding down into deep cavities and/or high-density packages. Assembly No.8433.

    -69C

    Tool Assembly for Wedge Bonding, Diagonal Feed, "C" Series.

    Standard Tool Assembly for diagonal wire feed for Model 7400C. Clamps are opened pneumatically and are driven by linear actuator. This is a stand-alone assembly to allow field convertibility. Assembly 8408.

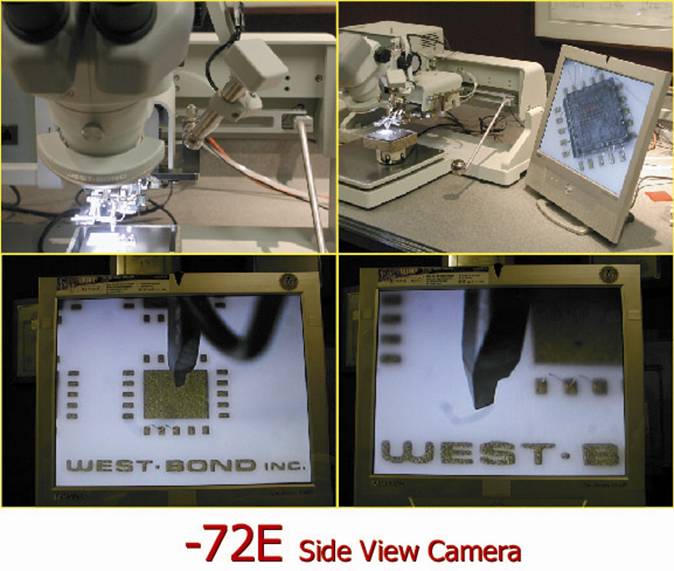

    -72E

    External View TV Camera for "4kE", "7kC", "7kD" & "7kE" Series.

    Color External View TV Camera for "4kE", "7kC", "7kD" & "7kE" Series. Assembly No. 10375. Magnification is adjustable within a range of 30X to 55X; view angle is adjustable; flat screen monitor & power supply included (for use with 100-220V AC power source); ESD protected. Available as a stand-alone product. Machines purchased before December of 2003 may require a replacement microscope mount bracket.

    -75

    Direct Output from Pull or Shear Tester to a Computer via RS-232 for graphically plotting the test results.

    Direct Output from Pull or Shear Tester to a Computer via RS-232 for graphically plotting the test results. Furnished as Assembly No. 8500, which includes the software application, connecting cable, and instructions. Only available for machines with software Version 1.0, or greater, running on Motorola 68000 microprocessor, or together with the separate purchase of the new CPU Board.

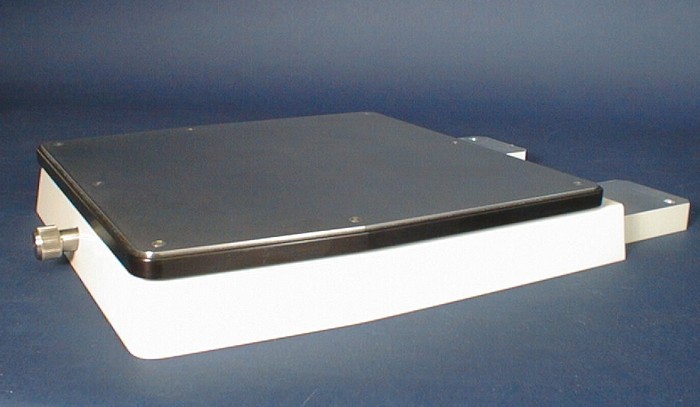

    -79

    Adjustable Height Work Platform, without Rotation.

    Adjustable Height Work Platform, without Rotation. Assembly No. 8557 replaces Assembly No. 8273. Adjusts thru a range of 0.625 in., 0.09375 above and 0.53125 below nominal work elevation.

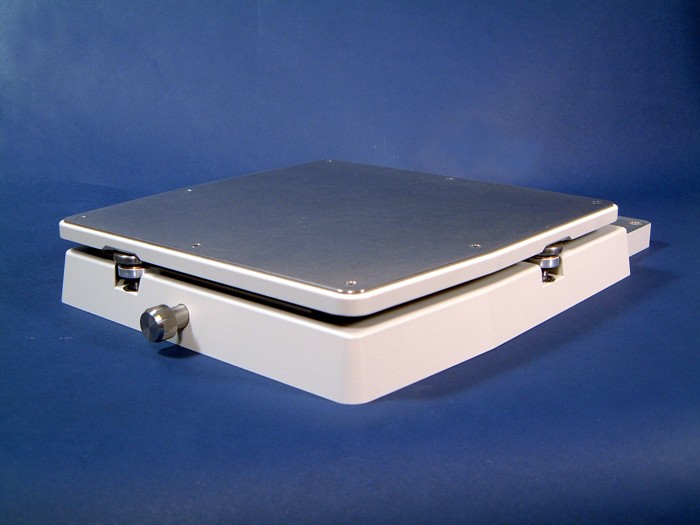

    -81

    Adjustable Height Work Platform, with Planarity Control.

    Adjustable Height Work Platform, with Planarity Control. Adjusts thru a range of 0.625 in., 0.1250 above and 0.5000 below nominal work elevation. Planarity control of platform is by 3 point adjustment that allows for approximately 2 degree variation in any direction. Assembly No. 10303.

    -4141.006

    Spool Mount, 2" Nickel Plated, Used "E" Series Machines(ESD)

    Spool Mount: Universal 2.00" dia. spool mount, is housed into a Nickel plated aluminum enclosure. The wire is fed through a 6.00 inch long Stainless Steel funnel, which serves as a wire guide. A window is provided in the cover to monitor the amount of wire used on the spool. Assembly number A-4141.006.

    -4141.008

    Spool Mount, 2" Nickel Plated, Used "A", "C", and "D" Series Machines (ESD)

    Spool Mount: Universal 2.00" dia. spool mount, is housed into a Nickel plated aluminum enclosure. The wire is fed through a 6inch long Stainless Steel funnel, which serves as a wire guide. A window is provided in the cover to monitor the amount of wire used from the spool. Assembly number A-4141.008.

    -4141.009

    Spool Mount, 2" Nickel Plated, Used "B" Series Machines(ESD)

    Spool Mount: Universal 2.00" dia. spool mount, is housed into a Nickel plated aluminum enclosure. The wire is fed through a 6inch long Stainless Steel funnel, which serves as a wire guide. A window is provided in the cover to monitor the amount of wire used from the spool. Assembly number A-4141.009.

    -4503

    1/2" Teflon Spool Mount, Used on Model 7600C

    1/2" Teflon spool mount for 1/2" diameter spools. Assembly 4503.

    -7769

    1/2" Ball Bearing Spool Mount, Used on "B" Series Models

    Standard 1/2" ball bearing spool mount for 1/2" diameter spools. Assembly 7767.

    -7794

    1/2" Ball Bearing Spool Mount, Used on "A" Series Models

    Standard 1/2" ball bearing spool mount for 1/2" diameter spools. Assembly 7794.

    -9039

    Adapter Kit, for 3 cc Disposable Syringe, Model 7200CR use with Olympus microscope only

    Adapter Kit for 3 cc Disposable Syringe. This kit need to equipped with Olympus microscope as there is clearance problem for Nikon microscope.

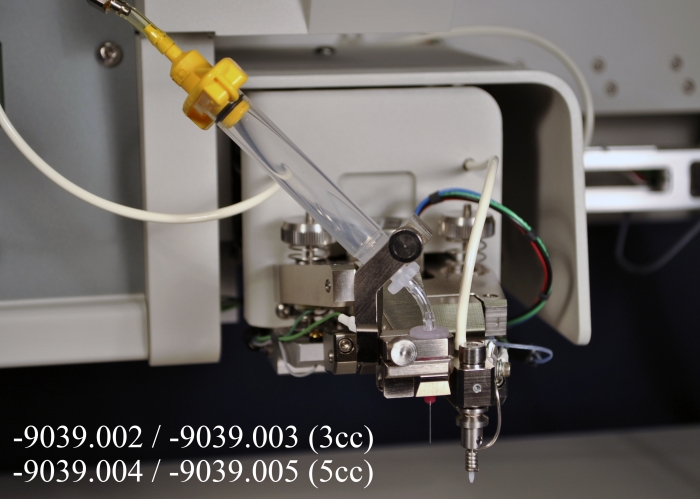

    -9039.002

    Adapter Upgrade Kit, for 3 cc Disposable Syringe, Model 7372E

    Adapter Kit for 3 cc Disposable Syringe, with 3 cc Reservoir Air Line Adapter and Spare Luer Fitting Barbed Coupler. Use for 0.5" Straight Precision Stainless Steel Dispense Tips.

    -9039.003

    Adapter Kit, for 3 cc Disposable Syringe, Model 7372E

    Adapter Kit for 3 cc Disposable Syringe, with 3 cc Reservoir Air Line Adapter and Spare Luer Fitting Barbed Coupler. Use for 0.5" Straight Precision Stainless Steel Dispense Tips.

    -9039.004

    Adapter Upgrade Kit, for 5 cc Disposable Syringe, Model 7372E

    Adapter Kit for 5 cc Disposable Syringe, with 5 cc Reservoir Air Line Adapter and Spare Luer Fitting Barbed Coupler. Use for 0.5" Straight Precision Stainless Steel Dispense Tips.

    -9039.005

    Adapter Kit, for 5 cc Disposable Syringe, Model 7372E

    Adapter Kit for 5 cc Disposable Syringe, with 5 cc Reservoir Air Line Adapter and Spare Luer Fitting Barbed Coupler. Use for 0.5" Straight Precision Stainless Steel Dispense Tips.

    -9221

    20" x 20" Platform, Model 4KE Series

    Extra large 20" x 20" Work Platform Assembly. May be used on all 4KE Series machines. Assembly A-9221.

    -9228

    20" x 20" Platform, Model 7KE Series

    Extra large 20" x 20" Work Platform Assembly. May be used on all 7KE Series machines. Assembly A-9228.

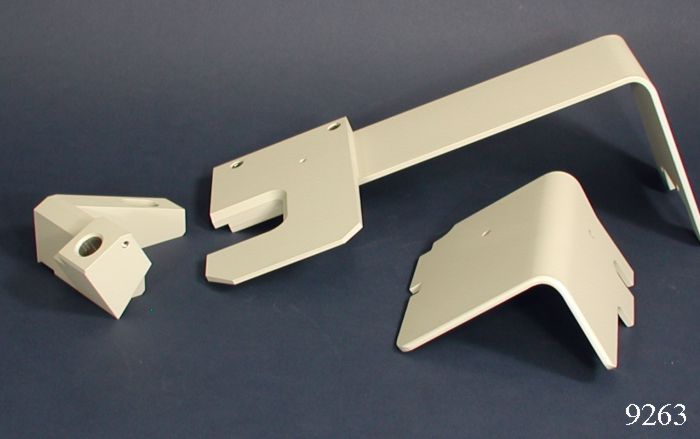

    -9263

    Kit, Conversion for Model 7400E Series

    Conversion Kit for Model 7400E with K~1100 Wire Despooler. ESD Protection.

    -11028

    Adapter Kit, for 0.25 cc Disposable Syringe, Model 7200CR

    Adapter Kit for EFD 0.25 cc Disposable Syringe, with air line Adapter.

    -11028.01

    Adapter Kit, for EFD 0.25 cc Disposable Syringe, Model 7372E

    Adapter Kit for EFD 0.25 cc Disposable Syringe, with Air Line Adapter.

    -11028.02

    Adapter Upgrade Kit, for EFD 0.25 cc Disposable Syringe , Model 7372E

    Adapter Kit for EFD 0.25 cc Disposable Syringe, with Air Line Adapter.

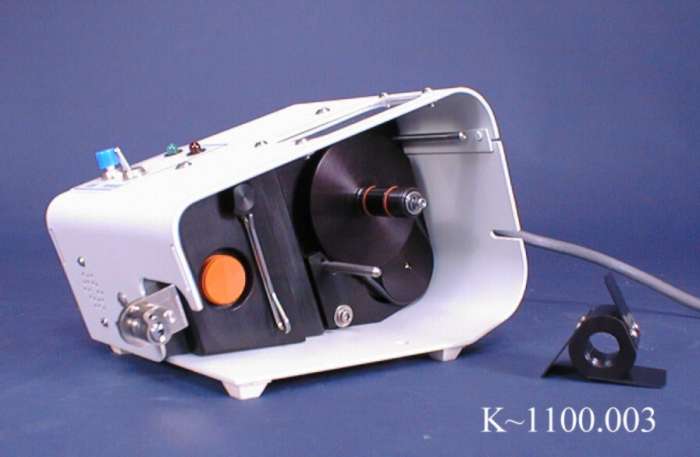

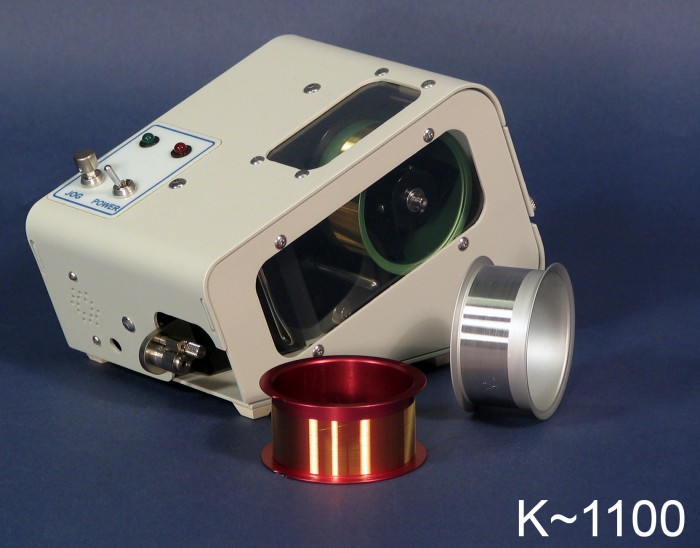

    K~1100

    Wire Despooler

    Automatic Wire Despooler. Pays out bond wire at 1.0 in./sec. from 2 in. wire spool. Maintains constant slack with zero drag. Announces end of wire stock. ESD Protection.

    K~1100-3

    Wire Despooler

    Automatic Wire Despooler. Pays out bond wire at 1.0 in./sec. from either 1/2 in. or 2 in. wire spools. Maintains constant slack with zero drag. Announces end of wire stock. ESD Protection.

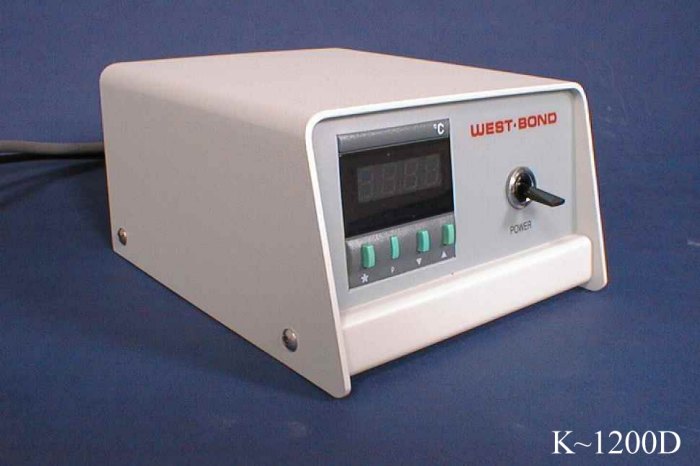

    K~1200D

    Temperature Controller, 400 Watts

    Temperature Controller, 400 Watts. Assembly Part No 8204.

    ESD Protection.

    K~1201D

    Temperature Controller, 600 Watts

    Temperature Controller, 600 Watts. ESD Protection.

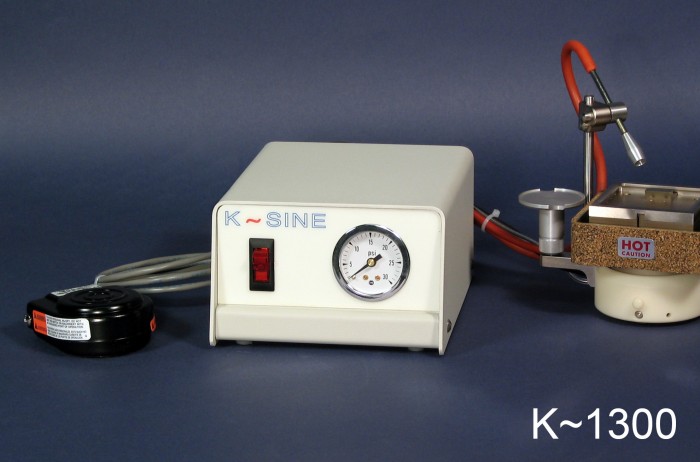

    K~1300

    Gas Flow Control

    Comprised of K~1310 Gas Flow Control and K~1320 Laminar Flow Nozzle. Used to compliment West Bond Cavity Inert Atmosphere Workholders for Eutectic die attachment. ESD Protection.

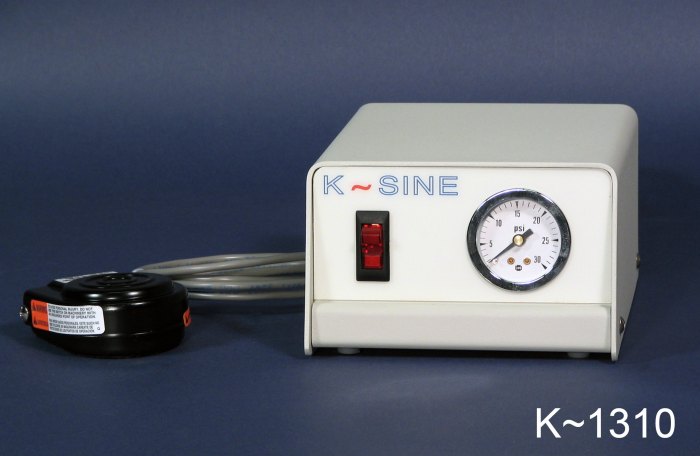

    K~1310

    Gas Flow Control

    The operator, by means of an on/off footswitch, releases the gas to the work area. Immediately after the scrub cycle stops, the footswitch is activated and the die is showered with forming gas. A manual adjustment is provided to meter the amount of gas. ESD Protection.

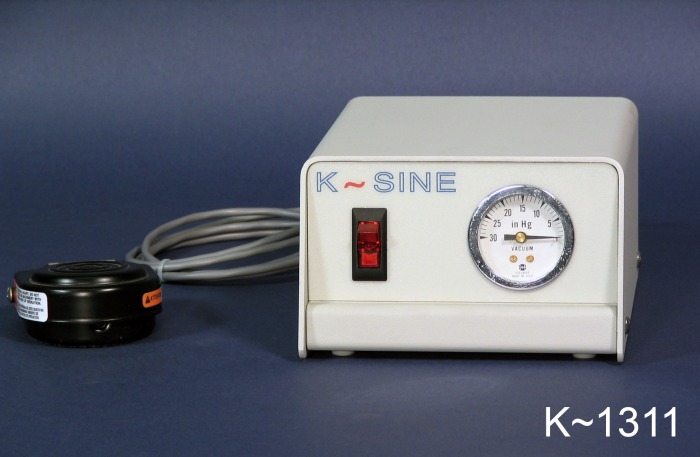

    K~1311

    Vacuum Control

    The operator, by means of an on/off footswitch, releases the vacuum to the work area. ESD Protection.

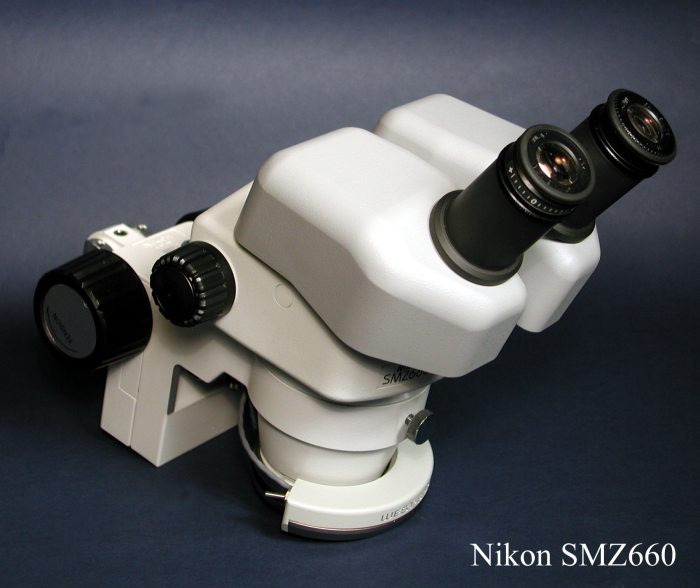

    SMZ-660

    Nikon ESD Microscope

    Nikon Microscope with ESD protection, with E-Arm, with 15X eyepieces, without Illuminator. Assembly No. 9652

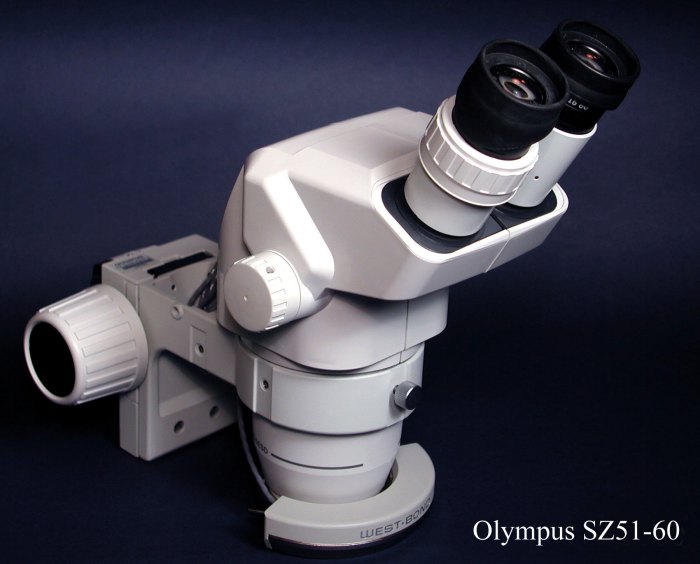

    SZ51-60E

    Microscope

    Olympus, Model SZ51-60 Microscope with E-Arm, with 15X eyepieces, without Illuminator. ESD Protection. Assembly A-10560.



    We have a wide selection of Manual Die Bonders. Click here for more information.

    We have a wide selection of Manual Wire Bonders. Click here for more information.

    We have a wide selection of Semi-Automatic Wire Bonders. Click here for more information.

    Click here for Automatic Wire Bonders.

    Click here for Wire Pull Testers.

    Click here to view all West·Bond Products.
